Tearing Strength Tester i9 (12.8 Kg)

Product Description

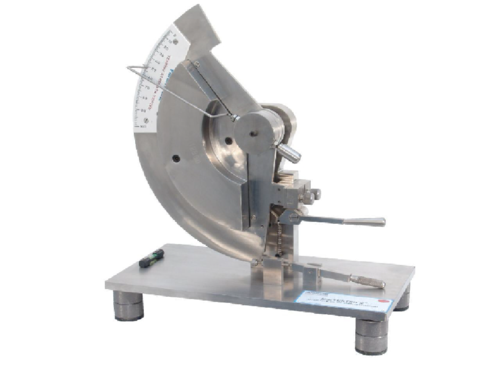

Paramount Tearing Strength Tester i9 (12.8 Kg) is made of Complete Stainless-Steel. It is ergonomically designed, consisting of a sector pendulum pivoted on anti-friction ball bearing on a vertical bracket fixed on a rigid metallic base. The test specimen in shape of are ctangular piece is held between two jaws, one of which is mounted on the pendulum and the other is mounted on the vertical arm. The jaws clamps are mounted in such a manner that their holding faces are aligned with each other when the pendulum is locked in its raised position. An adjustable knife is also mounted on the vertical arm. It is centred between the two jaws for making initial slit in the test specimen. The pendulum is released by lifting a brake release lever. This action causes the test specimen to tear right through. The tearing strength is indicated on a calibrated scale fitted on the pendulum by a fine pointer. A Set of calibrated weights are supplied with the tester for verification of calibration of the scale at 3200, 6400 and 12800 grams capacities. In order to increase the capacity of the tester from 3200 grams, augmenting weights of 6400 grams and 12800 grams are supplied as standard accessories.

SALIENT FEATURES

• Special Tearing Tester for Heavy Samples
• Latest design with modern aesthetics, giving true value for money
• Specialized Equipment to determine tearing strength of heavy fabrics accurately
• The instrument is based on Elmendorf principle
• With adjustable Cutting knife to give initial cut to the Sample
• Four Adjustable footrest for fine levelling thru the spirit level
• Having three variable capacity 3200 grams, 6400 grams & 12800 grams for different type of fabrics
• Cutting template supplied for preparing samples
• Complete with all accessories including three calibration weights
• Meticulously Designed Components for exceptional performance
• Supplied with Inspection & Conformance Certificates
• Supplied with Calibration Certificate (Traceable to NPL)
