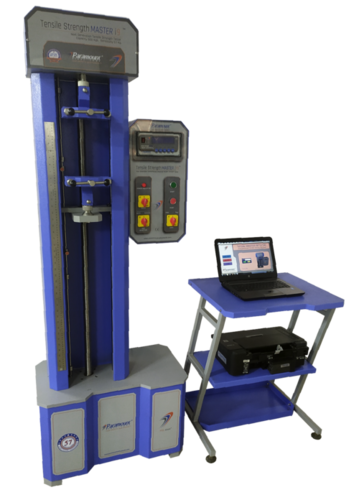

Tensile Strength MASTER i9 Complete Package with software

Product Description

Tensile Strength tester is professionally applicable to measurement of tensile, peeling, tearing, adhesive, pulling force as well as other properties of fabrics ,yarn leas , home textile , footwear, Leather, plastic films, soft package materials, plastic flexible tube, adhesive tapes, label stickers, protective films, aluminum foils, diaphragms, non-woven fabrics, leather ,rubber and paper, etc.

Paramount Tensile Strength Tester i9 is Next Generation equipment, which works on the Constant Rate of Elongation (CRE) principle. The equipment body i s made of mild s tee l with three jaws to test specimen. The lower clamps o r jaw i s movable & the upper clamp is stationary. The load exerted on the movable jaw is sensed by load cell attached with upper clamp, which directly indicates the load digitally in kgf as well a s in software .The equipment runs with advanced software through laptop (Supplied along with it). The equipment has an in-built provision for safety arrangement. It has a provision to prevent over travel of the moving jaw. It has an in-built line filter arrangement to check any fluctuations in power supply so that it does not have any effect on  the result generated, thereby giving accurate result. The exclusive feature of Tensile strength Tester i10 is that it can run from the control panel or through the software in the laptop (Supplied along with it). Its software is advanced with all latest features. The equipment is finished in special blue & grey powder coated paint. The other parts are made with Stainless-Steel to give a corrosion resistant long-life finish.

SALIENT FEATURES

Next Generation Tensile Strength Tester which comes in a Complete Package with Latest Laptop duly Loaded with AccuTEST software, a coloured Printer and a Special ergonomic Table to accommodate the complete Package along side the Advanced Tensile Strength Tester.

This Advanced Equipment is designed to Test Wide Range of materials including Paper, Packaging material, films, foils, plastics, adhesives, Non-woven, Food, Toys, Medical devices, Fabrics, Yarn, Leather, Footwear etc. to undertake various Tests of Tensile, elongation, breaking strength, Compression, Tear, and peel bond.

Supplied with AccuTEST Software with Simple and Clear navigation. The specialised Program makes

testing easy, precise, efficient, and joyful. Paramount s AccuTEST Software goes beyond data collection

and presentation. It helps in the charting and analysis of QC Testing thru Multi test Reports and Graphs.

Twin Operations : Thru Intuitive Touch Panel Controls or thru the AccuTEST Software from the Laptop supplied along with the equipment

Capacity : 500 kgf, Least Count : 200 gms.

Fully Variable Speed Controls with speed raging form from 20 to 500 mm

Supplied with 1 jaw (Grab Test), 4 jaw (Strip & Seam Slippage Test) and Lea Strength Jaw

Supplied Complete with all accessories Including Templates to prepare samples

Power : 220/230 V, Single Phase, 50 HZ AC.

Supplied complete with Calibration Certificate (Traceable to NPL )
