Product Description

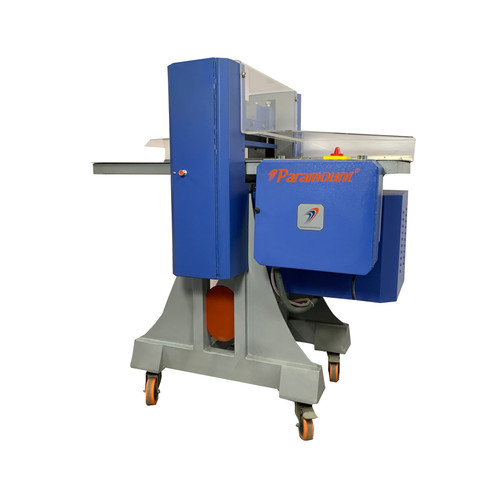

Swatch cutter Motorized is a Next Generation motorized swatch cutting machine for the zigzag cutting of patterns, apparel, dress, curtains, Upholstery, household textiles, samples in multiple layers to a depth of50 mm (5 cm) and width of 500 mm .
Paramount SwatchMASTER 500 i9 (Motorized) is sturdy equipment made of mild steel. The cutting assembly is covered with transparent acrylic sheet for the safety of operator. The cutting action is accomplished by specially imported Italian blade with the help of motorized mechanism. The equipment has specially designed control switches for operator ease of operation. A special grade cutting pad is provided to conveniently make swatches & to prolong the life of the blade. Two scales are mounted one ither side of the machine for measuring the sample length of the swatches. The equipment is mounted on four castor wheels with wheel stopper system.
Brand | Paramount |
Automation Grade | Automatic |
Power Source | 220v |
SALIENT FEATURES
- Latest designed motorized swatch cutting machine for making samples as per size & length
- Sample of the maximum 500 mm width & any length can be prepared.
- Depth of the sample up to 50 mm can easily be cut
- Ergonomic design with digital control
- Smooth precision-engineered components for exceptional performance
- Fully protected by clear acrylic safety guard
- Pinking blade makes excellent swatches
- Caster wheel at base with stopper gives flexibility in movement of equipment
- A calibrated scale on both sides to prepare sample as per requirement
- Supplied complete with Calibration Certificate (Traceable to NPL)
